Technical Specifications

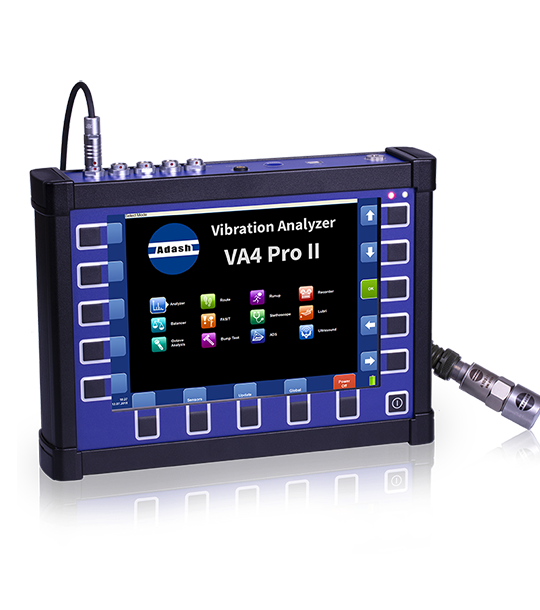

VA4 Pro II specifications

Input channels:
4 x AC, ICP® power supply on/off
4 x DC for process values
1 x TACHO for speed probe/external trigger

Input range:
AC +/- 12 V peak-peak
DC +/- 24V
AD conversion:
24 bit, 64 bit internal signal processing
No AutoGain function!

Dynamic range S/N:
120 dB
Frequency ranges (-3 dB):
Maximum range: 0.35 Hz - 90 kHz (1 Ch, 194 kHz sampling)
Maximum range: 0.35 Hz - 25 kHz (4 Ch, 64 kHz sampling)
Minimum range: 0.35 Hz - 25 Hz (4 Ch, 64 Hz sampling)

Sampling mode:
Fully simultaneous for 4 channels
FFT resolution:
Min. 100 lines
Max. 3 276 800 lines

Unit modes:
Analyzer - analytical measurements
Data collector - route measurements
Balancer - 1 and 2 plane on site balancing
Run up - run up and coast down measurements
Recorder - raw signal recording for later post analysis
Stethoscope - listening of the bearing/machine noise
FASIT - expert system for automatic fault detection
Octave analyzer - hearable sound measurements
Bump test - measurement of natural frequencies
ADS - Animated Deflection Shapes (Operating deflection shapes)
Ultrasound - measurement of ultrasound in 30 - 50 kHz range
Display:
1125 x 800 pixels

Processor:
Intel Atom 1.9 GHz
Memory, Route:
64 GB, max. 16 GB for one route, number of routes is limited by free memory only

Data processing:
Real time FFT
DEMOD - ENVELOPE analysis
ACMT - low speed bearing analysis
Order analysis
User band pass analysis
RPM measurement
DC measurement
Orbit measurement
Raw signal recorder:
64 kHz sampling frequency
4 Ch memory consumption 3 GB/hour
4 Ch total recording - 20 hours

Trigger:
Manual, External, Signal level, Time
Speed change, Time interval
Interface:
USB 3.0, 2.0 compatible

Operating temperature range:
-10˚C to +50˚C
Power:
Battery 8 hours of operation

Case:
Aluminium heavy duty
Size & Weight:
29,5 x 23 x 4,9 cm, 2 Kg

Languages:
English, Spanish, German, French, Portuguese, Russian, Czech, Hungarian, Polish, Romanian, Thai
