VPUBK30-TO-2st Two stations, fully automatic
Field of application Two stations fully automatic balancing system for car brake discs; unbalance correction made by milling. The main features are the reduced cycle time and the possibility of a second correction sequence after the check spin.

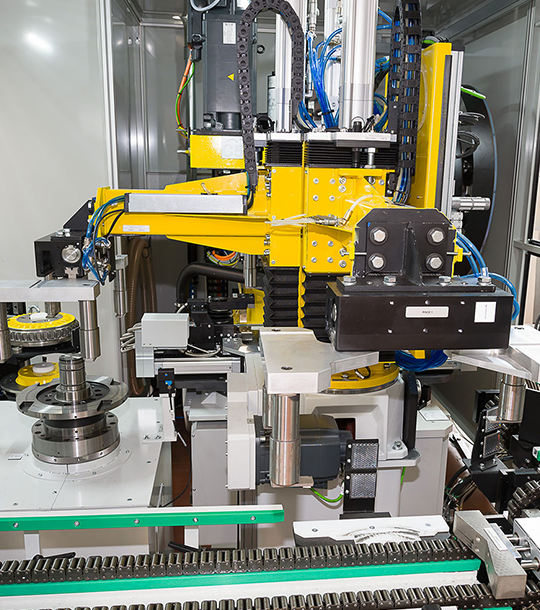

Features The balancing system is equipped with: – Loading conveyor equipped with the part recognizing system; – Unbalance measuring station; – Stations for the correction and the control of the part unbalance. The correction is obtained by a milling machine with two controlled axes; – Output conveyor for good and scrap parts; – Automatic loader with three arms; – Rotating type cutting tool storage able to easily handle the automatic changeover up to 10 different milling tool.
Approx overall dimensions:
– Width: 7000 mm – Depth: 4600 mm – Height: 2700 mm
