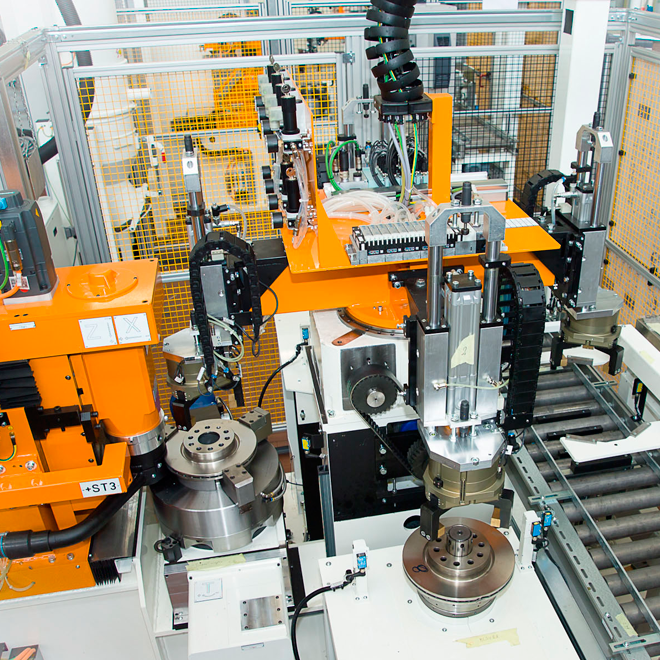

Field of application Three station automatic balancing line with four arms loader and conveyors
Features: The machine is equipped with: – Input conveyor with the part recognizing system obtained by the automatic reading of the height and diameter of the disc. – Unbalance measuring station. – Unbalance correction station obtained by milling operation. – Unbalance control station. – Automatic loader with 4 arms. – Addressing of the parts at the end of the cycle to the output conveyor with a switch for good and scrap parts. – Optional part marking system.
Advantages: – Reduced cycle time and 100% control of the residual unbalance. – Quick changeover – Large volume production runs
Approx overall dimensions:
– Width: 4000 mm – Depth: 4000 mm – Height: 2200 mm
